Automatic aerosol can line

MESSAGE

CONTACT

Product Details

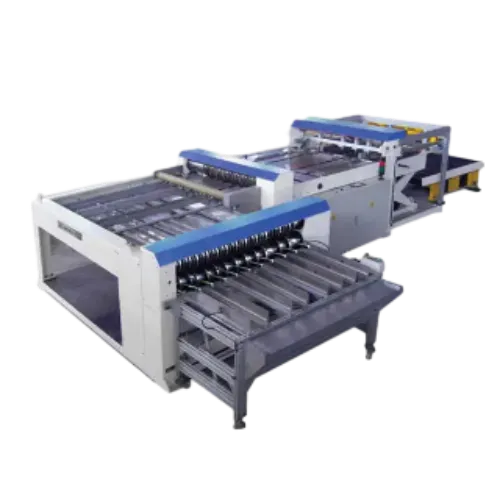

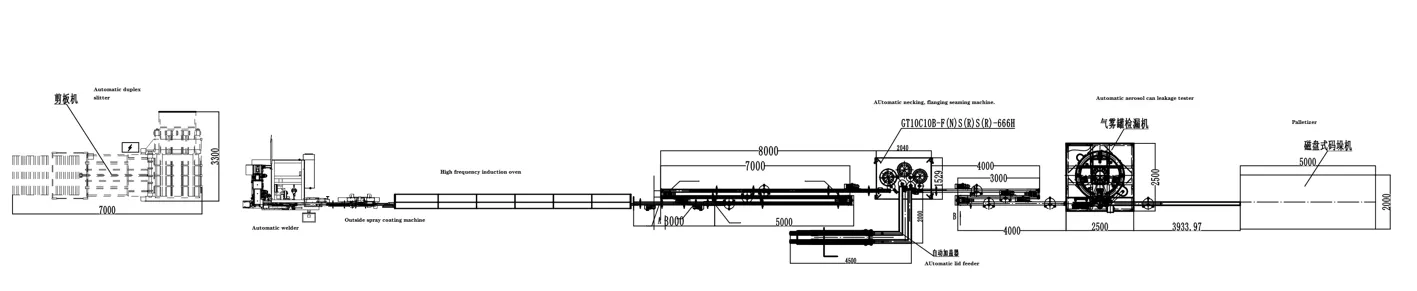

Fully automatic aerosol can line .Including automatic duplex slitter,Can body welder, Insider&outside coating with high frequency induction oven, can body forming machine .Leakage tester. Used for make the aerosol can making with speed range 40-250cpm for foam spray, butane gas ,air fresher ,spray paint use etc. 1. Automatic Duplex slitter
For can-making company to produce the blanks for the can body.
with Mitsubishi electric control components. YUKEN hydraulic components.
The first cutting knives is belong to carbide alloy.

	Model	GT10CA
	Max feeding Size	1200x1200mm
	Min Feeding Size	600x600mm
	Slitting thickness	0.12-0.5mm
	Slitting speed :	32SPM
	Diagonal tolerance	≤0.05mm
	Max 1st Slitting qt	6strips
	Max 2nd SlittingQt	12strips (75-1200mm)
	Power	12KW

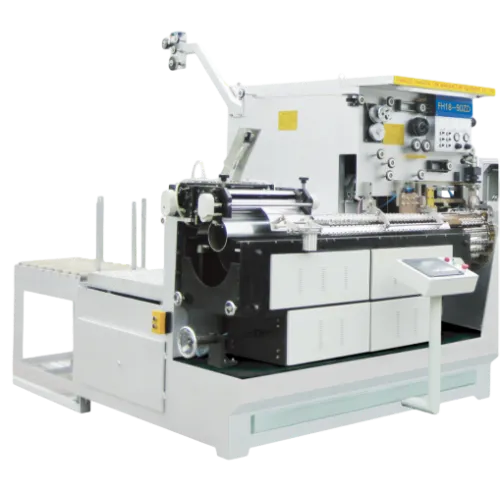

2. Automatic seam welder
Apply to the welding of various can ,food cans& chemical cans.With the function of automatic roll forming and welder.

	Modle	FHZ-300
	Production capacity	200-300 cpm
	Can diameter	52-99mm
	Can height	39-120mm
	Line speed	30-50m/min
	Weldering frequency	300-700Hz
	Copper wire	1.27-1.38mm
	Raw materials	Tinplate

3. Inside Outside coating machine
This machine use connecting hanging up conveyor system which is better for powder coating.

	Model:	GNWT-420
	Can diameter	52-105mm
	Coating manner:	Spray way
	Coating width:	10-15mm
	Dimension	1350x800x1800mm
	Weight	450kgs

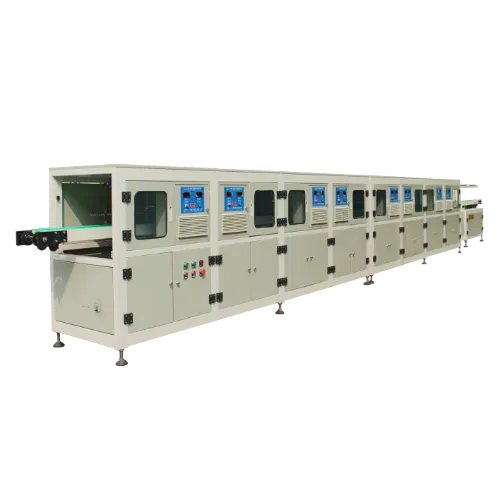

4. Induction oven machine
This machine used for dry the can body after lacquering with high frequency induction.

	Drying capability:	12-57m/min
	Model	GTCHG-180
	Drying manner:	High frequency induction curling system
	Size of dryer:	10660x1410x1800mm
	Max power consumption	18kwh
	weight	3000kg

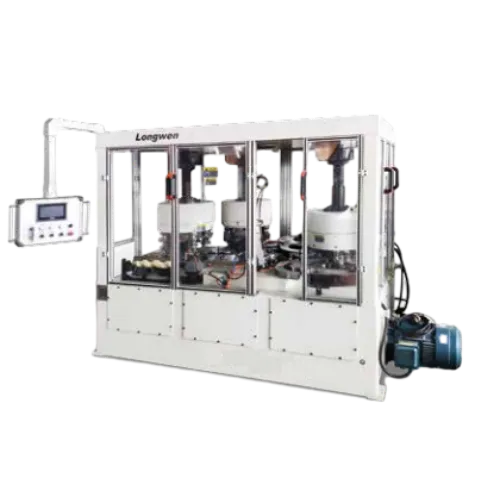

5. Body Flanging Necking seaming(Dome and Cone) machine
Vertical design,easy to connect with other machine Recyclable central lubricating system
Multi-safety design for machine and personal safety
Flanging spin rolls are driver by tiny gears receptively Carbide material for machine and personal safety
Can guide and star-wheel with chromium plating
