Semi-automatic rectangular can line
Semi automatic rectangular can production line,also be called manual can making line , as one machine need one worker to operate .This line is suitable for 10-25L square can making, production capacity is 12-15cans per min. We supplied such line to Saudi Arabia, Dubai, Vietnam, Malaysia, India, Mexico, Jordan and so on
Product Details

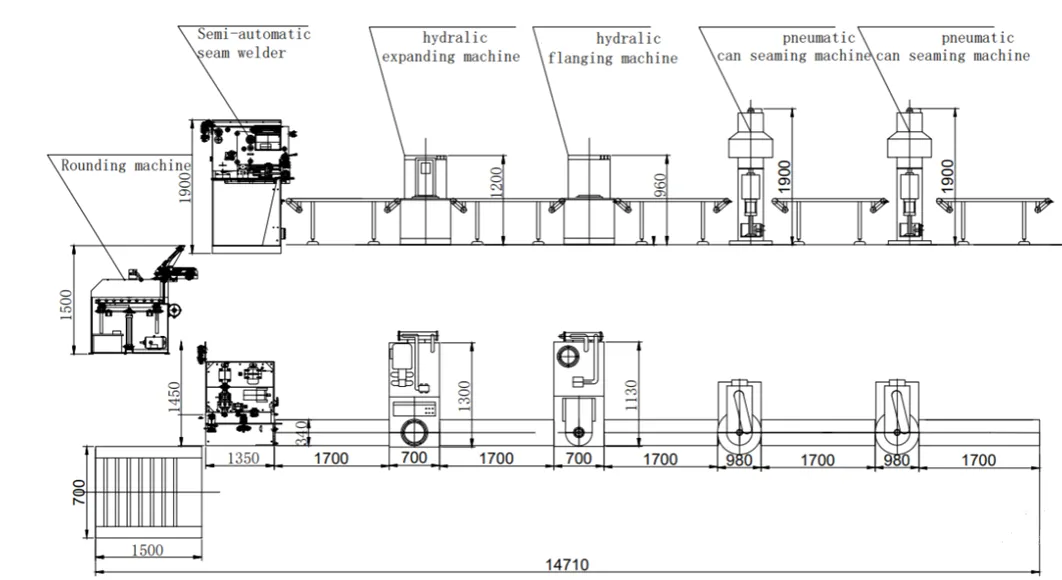

Layout of 1-4L semi auto rectangular can making machine

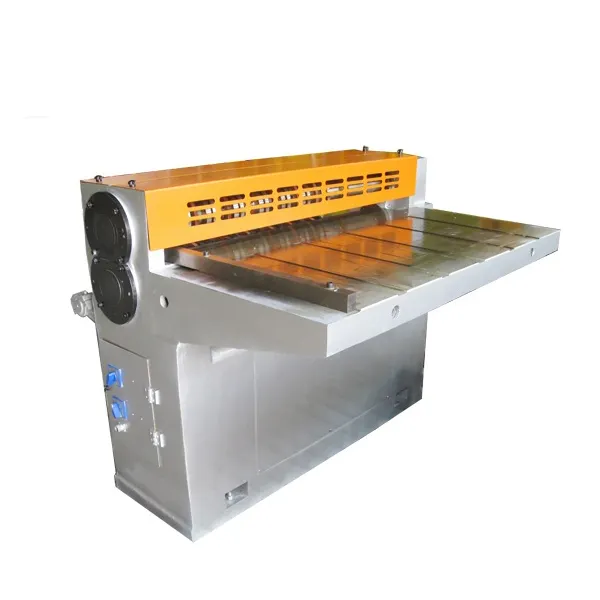

1. Gang Slitter
 |
Model: | GT1B5 |
| Max sheet thickness: | 0.4mm | |
| Max sheet width: | 1050mm | |
| Min sheet width: | 44mm | |
| Motor power: | 1.1kw | |
| Net Weight: | 1000kg | |
| Dimension: | 1500x1600x1105mm |

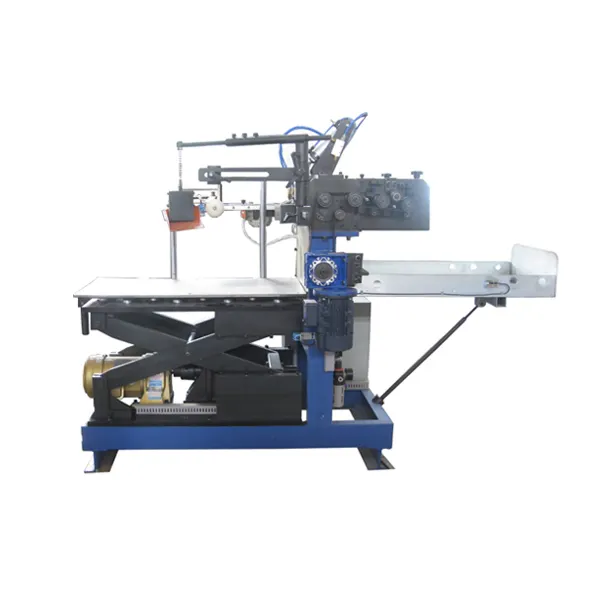

2. Automatic Roll forming machine
 |
Model : | CY400-AT |
| Capacity: | 20-30cans/min | |
| Diameter: | Φ75-Φ300 | |
| Applicative height: | ≤440 | |
| Net weight: | 450kg | |
| Dimension: | 2000×900×1500mm |

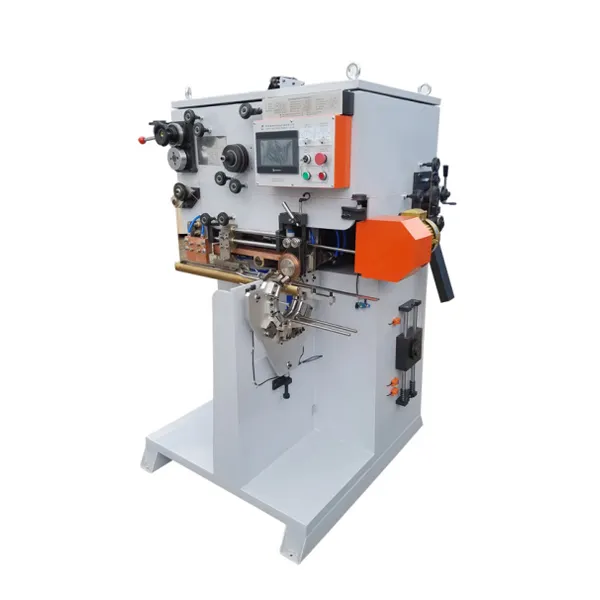

3. Backward Seam Welding Machine
 |
Model: | FB2000-A |
| Capacity: | 20-50cans/min | |
| Can diameter: | 65-300mm | |
| Can height: | 70-400mm | |
| Applicable material thickness: | 0.2-0.38mm | |
| The amount of overlap: | 0.6-1.2mm | |
| Copper wire: | φ1.5-1.7mm | |
| Power: | 3N380V/50HZ----15KVA | |
| Net Weight: | 1300kgs | |
| Dimension: | 1350x1300x1700mm |
4. Rectangular Can Forming Machine
 |
Model: | GT3FB3J/3FB4J |
| Capacity: | 10-15cans/min | |
| Applicative range: | 1-4L | |
| Power : | 2.2kw | |
| Weight :7 | 00kg | |
| Dimension: | 720X1400X1500mm |
5. Rectangular Can Flanging Machine
 |
Model: | GT3FB3J/3FB4J |
| Capacity: | 10-15cans/min | |
| Applicative range: | 1-4L | |
| Power: | 0.75kw | |
| Net Weight: | 350kg | |
| Dimension: | 680*1020*800mm |

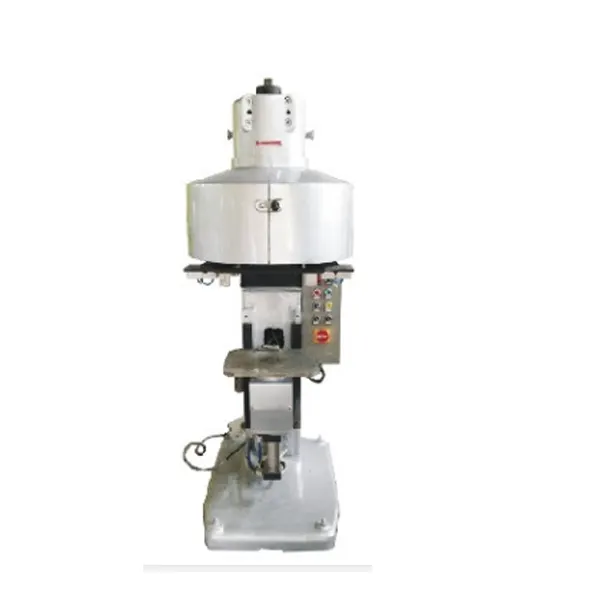

6. seaming machine
 |
Model: | GT14A16BQ |
| Application: | 0.1-5L rectangular can | |
| Capacity: | 12-15 cans/min. | |
| Electrical Power: | 2.2kw | |
| Net Weight: | 750kg | |
| Dimension: | 1070*720*2050mm |

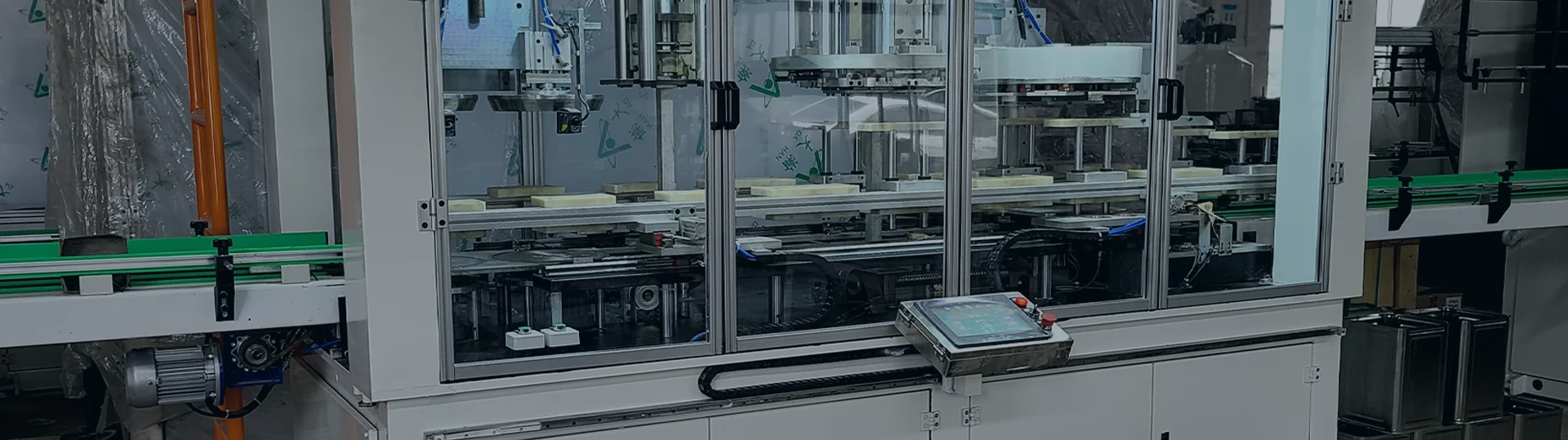

Production line
