Product Details
This line is suitable for 10-25L conical pail can making, production capacity is 12-15cans per min. We supplied such line to Saudi Arabia, Dubai, Vietnam, Malaysia, India, Mexico, Jordan and so on.

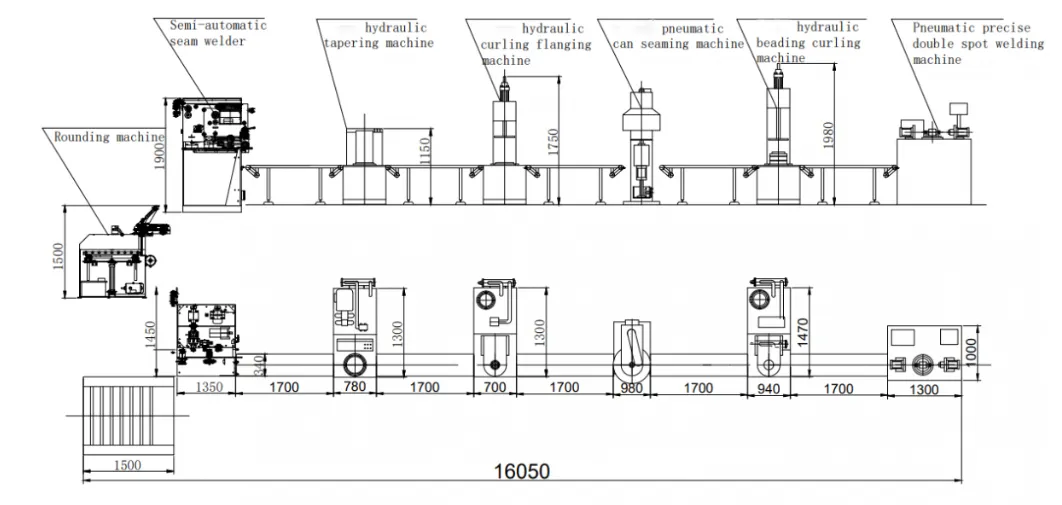

Layout of semi auto conical pail can line
Machine Details of semi auto conical pail can line
1. Gang Slitter
 |
Model | GT1B5 |
| Max sheet thickness: | 0.4mm | |
| Max sheet width: | 1050mm | |
| Min sheet width | 52mm | |
| Motor power: | 1.1kw | |
| Net weight: | 1400kgs | |
| Dimension: | 1500x1600x1105mm |

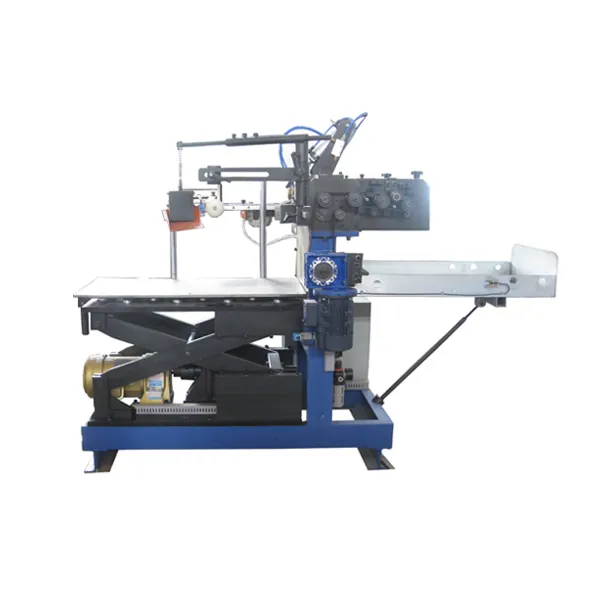

2. Automatic Roll forming machine
 |
Model | CY400-AT |
| Capacity: | 20-30cans/min | |
| Diameter: | Φ75-Φ300 | |
| Applicative height: | <≤440 | |
| Net weight: | 450kg | |
| Dimension: | 2000×900×1500mm |

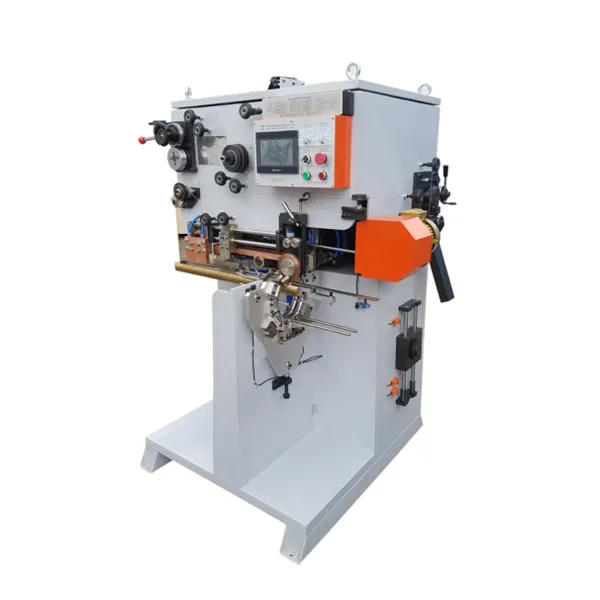

3. Rear Feeding Seaming Welding Machine
 |
Model: | FB2000-A | FB2000-B |
| Power: | 3N380V/50HZ----15KVA | ||
| Welding speed: | ≤12m/min | ||
| Capacity: | 20-50cans/min | ||
| Diameter: | ￠65-300mm | ￠52-170mm | |
| Height: | 70-400mm | 70-300mm | |
| Overlap: | 0.6-1.2mm | 0.4-1.0mm | |
| Thickness: | 0.2-0.4mm | 0.18-0.35mm | |
| Copper wire: | ￠1.5-1.7mm | ||
| Cooling water: | ≥0.3Mpa 8-10L/min | ||
| Net Weight: | 1300kgs | ||
| Dimension: | 1350x1300x1700mm | ||

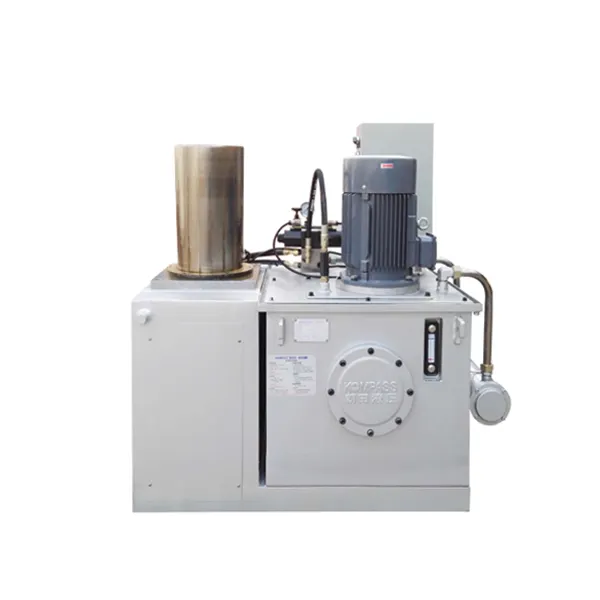

4. Hydraulic conical shape expanding machine
 |
Model: | GT3TA20 |
| Capacity: | 15cans/min | |
| Thickness: | ≤0.5mm | |
| Diameter: | 210-300mm | |
| Height: | 270-400mm | |
| Power: | 5.5kw | |
| Net Weight: | 900kgs | |
| Dimension: | 1300x780x1150mm |

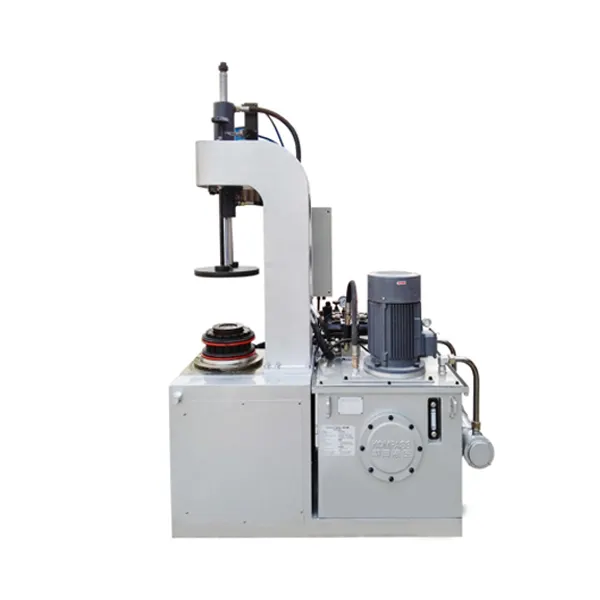

5. Hydraulic top pre-curling and bottom flanging machine
 |
Model: | GT3TB20 |
| Capacity: | 15cans/min | |
| Thickness: | ≤0.5mm | |
| Diameter: | 210-300mm | |
| Height: | 270-400mm | |
| Power: | 4kw | |
| Net Weight: | 900kgs | |
| Dimension: | 1300x700x1750mm |
6. Semi auto tin can seaming machine
 |
Model: | GT4A19YQ |
| Capacity: | 8-20cans/min | |
| Diameter: | 50-330mm | |
| Maximum Height: | 370mm | |
| Net weight: | 1200kgs | |
| Power: | 2.2kw | |
| Dimension: | 200X600X1800mm |

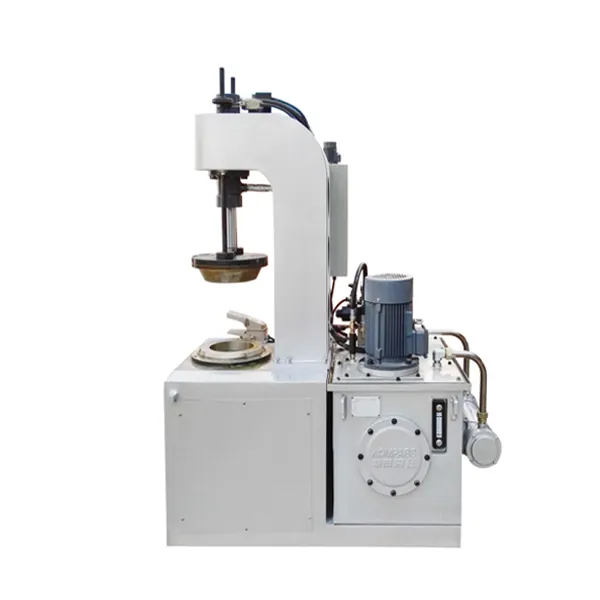

7. Hydraulic beading and curling machine
 |
Model: | GT3TC20 |
| Capacity: | 15cans/min | |
| Thickness: | ≤0.5mm | |
| Diameter: | 210-300mm | |
| Height: | 270-400mm | |
| Power: | 5.5kw | |
| Net Weight: | 950kgs | |
| Dimension: | 1470X940X1980mm |

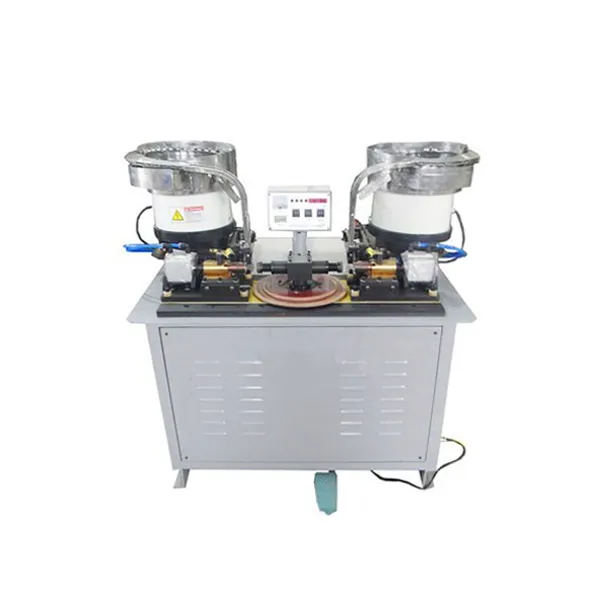

8. Automatic ear lug welding machine
 |
Power: | 3N380V/50HZ----60KVA |
| Capacity: | 20-25cans/min | |
| Thickness: | 0.2-0.5mm | |
| Compressed air: | 300L/min 0.6Mpa | |
| Net Weight: | 500kgs | |
| Dimension: | 1350×1000×1550mm |
