It is widely used for round aerosol can making for butange gas making. production capacity is 15-25cans per min.

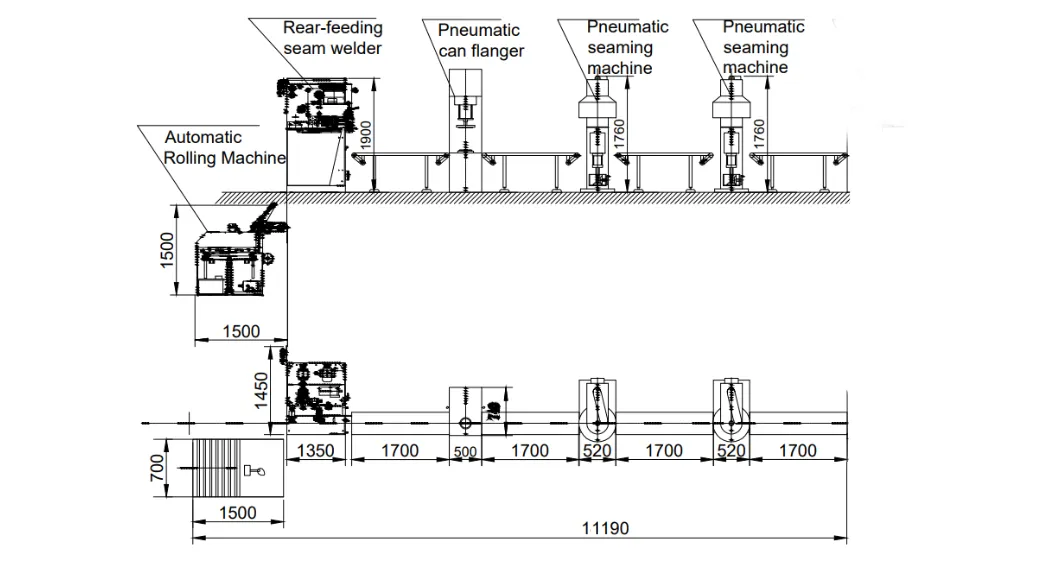

Layout of semi auto round can making line
Machine Details of semi auto round can making line

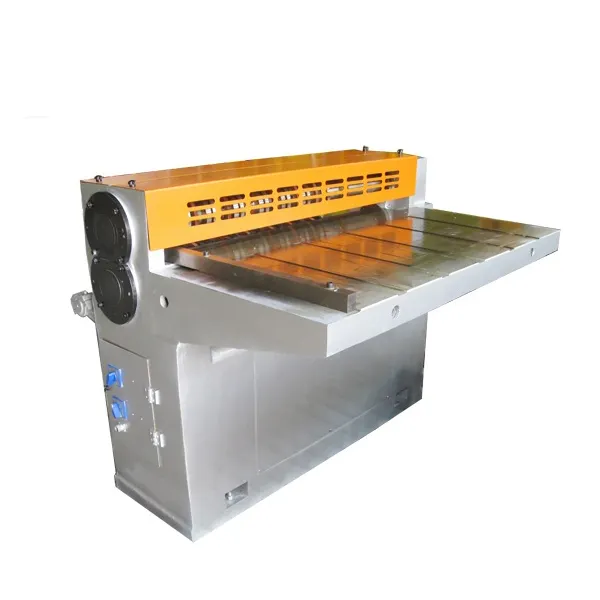

1. Gang Slitter
 |
Model | GT1B5 |
| Max sheet thickness: | 0.4mm | |
| Max sheet width: | 1050mm | |
| Min sheet width | 52mm | |
| Motor power: | 1.1kw | |
| Net weight: | 1400kgs | |
| Dimension: | 1500x1600x1105mm |

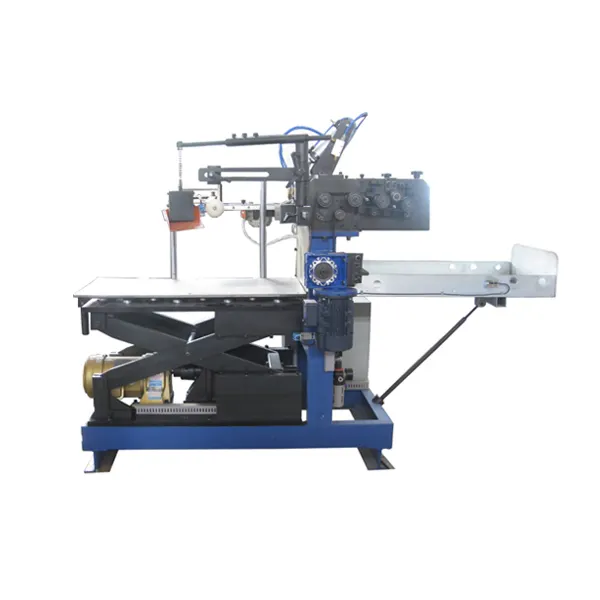

2. Automatic Roll forming machine
 |
Model | CY400-AT |
| Capacity: | 20-30cans/min | |
| Diameter: | Φ75-Φ300 | |
| Applicative height: | <≤440 | |
| Net weight: | 450kg | |
| Dimension: | 2000×900×1500mm |
3. Rear Feeding Seaming Welding Machine
 |
Model: | FB2000-A | FB2000-B |
| Power: | 3N380V/50HZ----15KVA | ||
| Welding speed: | ≤12m/min | ||
| Capacity: | 20-50cans/min | ||
| Diameter: | ￠65-300mm | ￠52-170mm | |
| Height: | 70-400mm | 70-300mm | |
| Overlap: | 0.6-1.2mm | 0.4-1.0mm | |
| Thickness: | 0.2-0.4mm | 0.18-0.35mm | |
| Copper wire: | ￠1.5-1.7mm | ||
| Cooling water: | ≥0.3Mpa 8-10L/min | ||
| Net Weight: | 1300kgs | ||
| Dimension: | 1350x1300x1700mm | ||

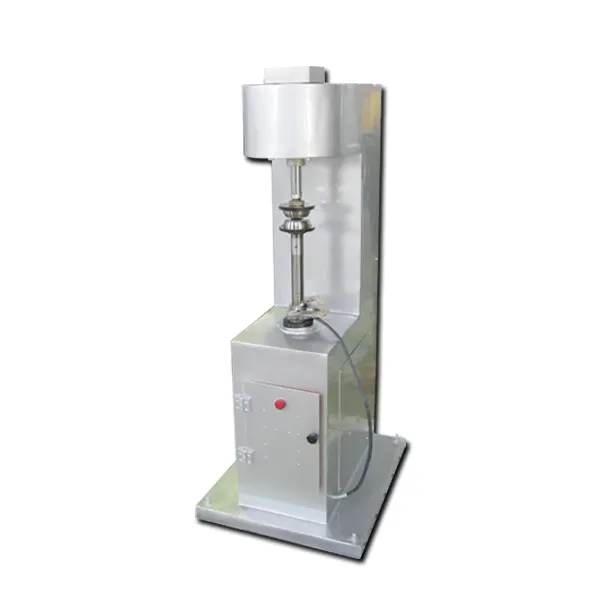

4. Pneumatic flanging machine
 |
Model: | QYA180F |
| Diameter: | 52-180mm | |
| Height: | 50-200mm | |
| Thickness: | 0.18-0.25mm | |
| Capacity: | 15cans/min | |
| Net Weight: | 100kgs | |
| Dimension: | 400x500x1380mm |
5. Semi auto Pneumatic tin can seamer
 |
Model: | GT4A6YQ |
| Capacity: | 20-30cans/min | |
| Diameter: | 50-180mm | |
| Maximum Height: | 300mm | |
| Sheet thickness: | ≤0.4mm | |
| Power: | 1.5kw | |
| Net weight: | 450kgs | |
| Dimension: | 720x520x1760mm |
Production line
