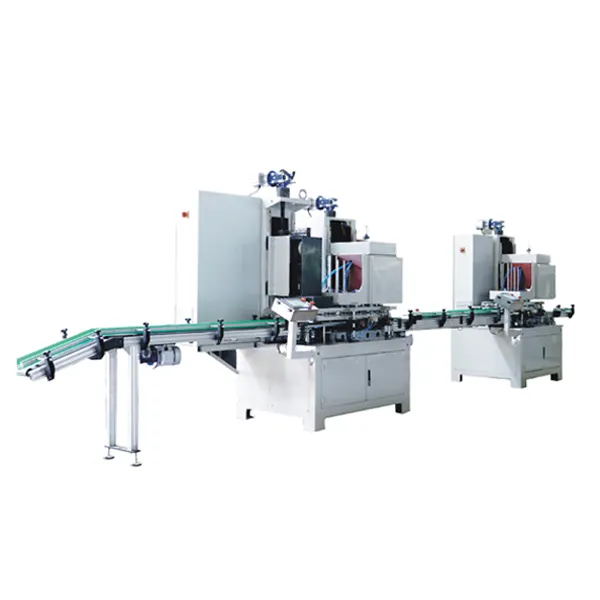

Automatic round can line

This line is suitable for 1-5L small round can making. We have two capacity lines, one is 35-40cpm line, another is 55-60cpm line.

MESSAGE

CONTACT

Product Details

This line is suitable for 1-5L small round can making. We have two capacity lines, one is 35-40cpm line, another is 55-60cpm line.

Machine features:
1. It is equipped with gas tank to ensure the machine stability druing production.
2. Can height can be adjusted automatically by PLC.
3. With automatic lubricating system.
4. Electrical element brand is Schneider.

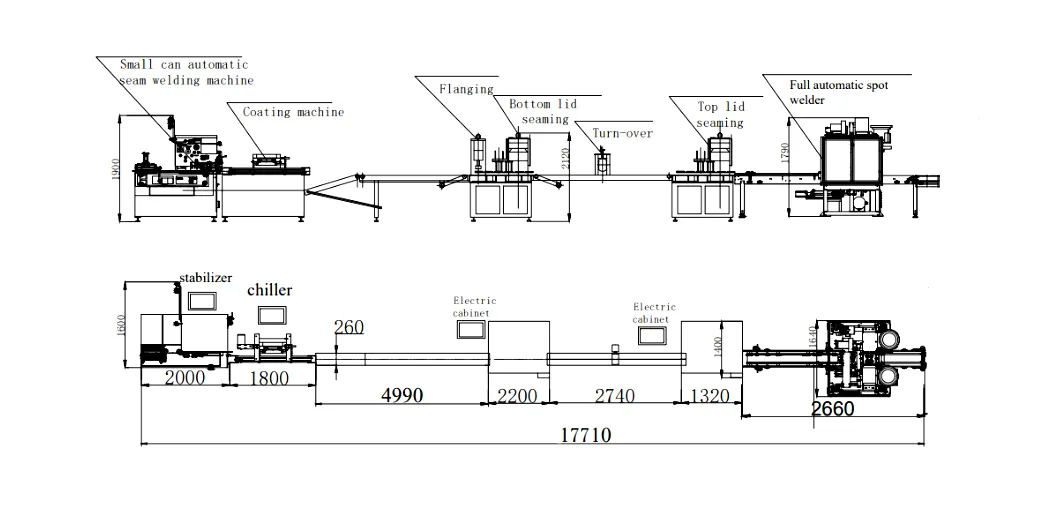

Layout of automatic conical pail can line

Automatic small round can line

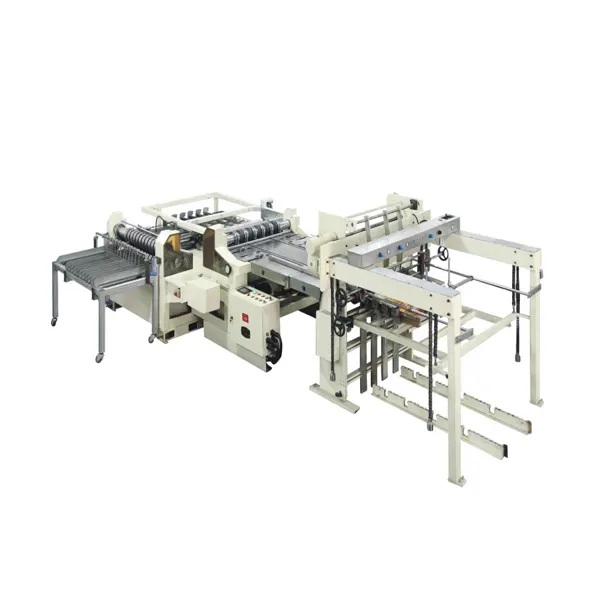

1.Duplex slitter

	Model			GT10CA
	Max feeding Size			1200x1200mm
	Min Feeding Size			600x600mm
	Slitting thickness			0.12-0.5mm
	Slitting speed			32SPM
	Diagonal tolerance			s0.05mm
	Max 1st Slitting at			6strips
	Max 2nd Slitingot			12strips (75-1200mm)
	Power:			12KW

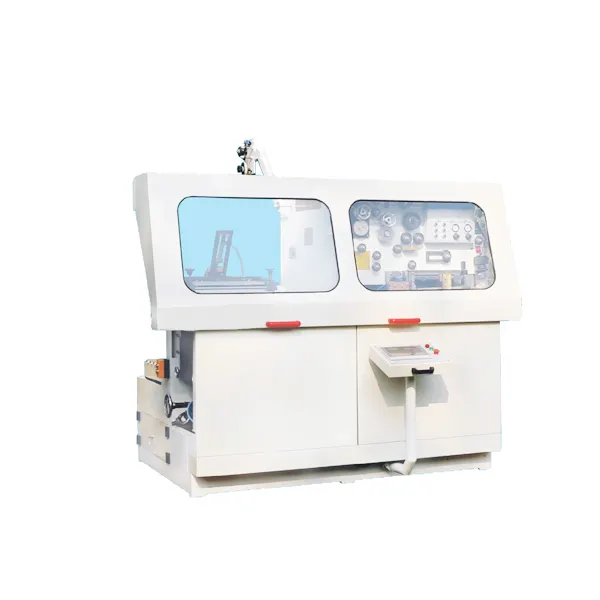

2. Automatic tin can welding machine

	Welding speed	6-36m/min
	Production capacity	30-200cans/min
	Can diameter range	Φ52-Φ99mm&Φ65-Φ180mm
	Can height range	55-320mm
	Thickness range	0.16~0.35mm
	Copper wire diameter	Φ1.38mm ,Φ1.5mm
	Cooling water	Temperature： ≤20℃ Pressure：0.4-0.5Mpa Flow：10L/min
	Power supply	380V±5% 50Hz 40KVA
	Dimension	1750x1500x1800mm
	Weight	1800kg

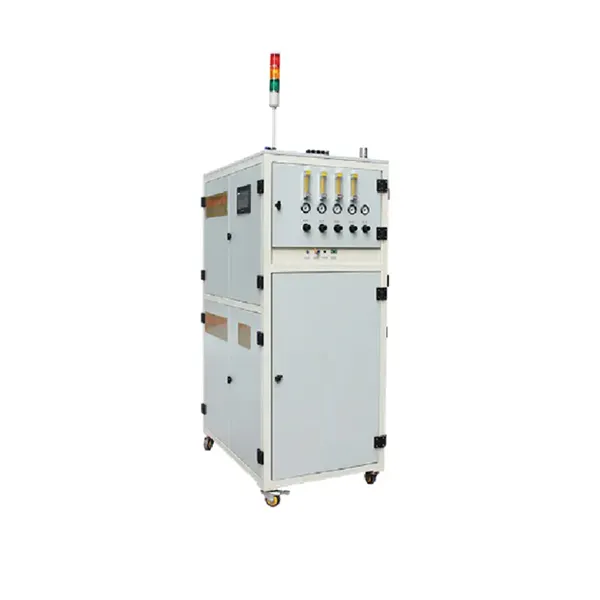

3. Inner powder coating machine

	Production speed	5-60m/min
	Powder consumption	8-10mm&10-20mm
	Air consumption	0.6Mpa
	Can diameter range	D50-200mm D80-400mm
	Air requirement	100-200L/min
	Power consumption	2.8KW
	Dimension	1080x720x1820mm
	Weight	300kg

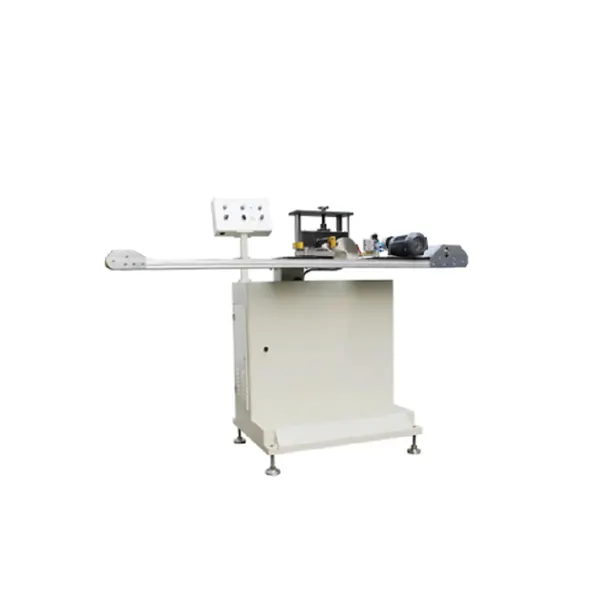

4. External lacquering machine

	Can height range	50-600mm
	Can diameter range	52-400mm
	Roller speed	5-30m/min
	Coating type	Roller coating
	Lacquer width	8-15mm 10-20mm
	Power supply	220V 0.5 KW
	Air consumption	0.6Mpa 20L/min
	Dimension	2100x720x1520mm
	Weight	300kg

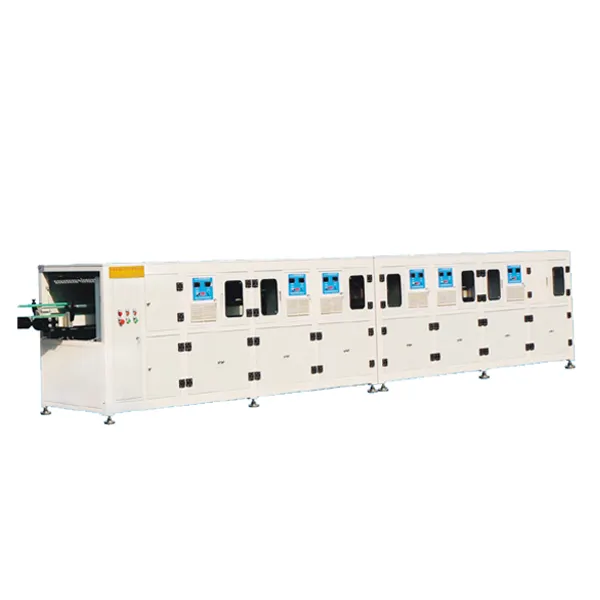

5. High Frequency Electromagnetic Dryer

	Conveyor speed	5-30m/min
	Can diameter range	52-180mm
	Effictive heating	800mm*6(30cpm)
	Power supply	380V+N>10KVA
	Induction time	25Sec(410mmH,40CPM)
	Dimension	6300x700x1420mm
	Weight	850kg
