Semi-automatic food can line

This line is suitable for #202,#211,#300,#307,#401,#404,#502,#603 round food can making, production capacity is 12-15cans per min. We supplied such line to Saudi Arabia, Dubai, Vietnam, Malaysia, India, Mexico, Jordan and so on

MESSAGE

CONTACT

Product Details

It is widely used for round food can making, such as food can and so on. production capacity is 15-25cans per min. We supplied such line to Saudi Arabia, Dubai, Vietnam, Malaysia, India, Mexico, Jordan and so on

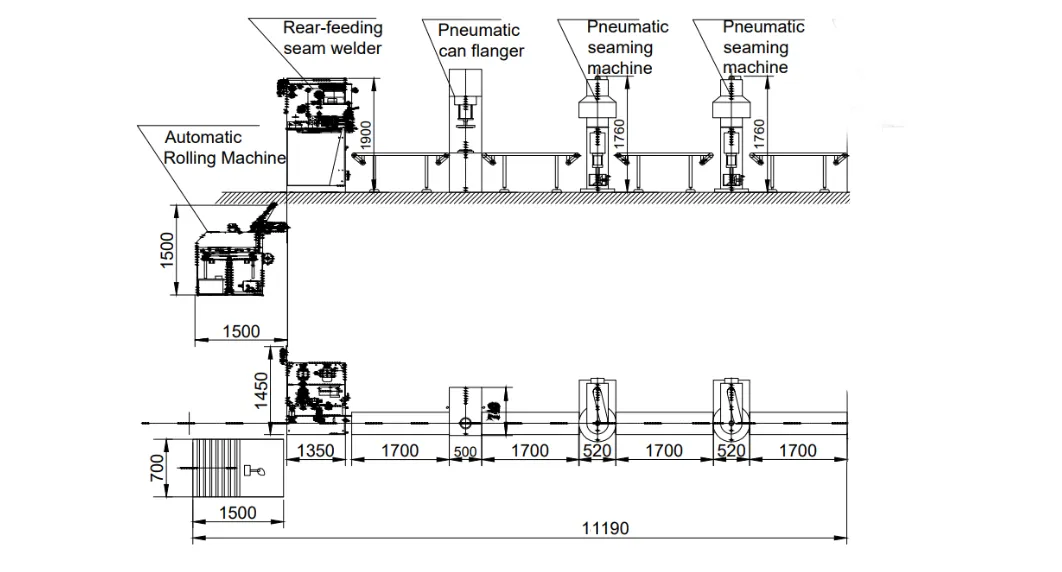

Layout of semi auto round can making line

Automatic small round can line

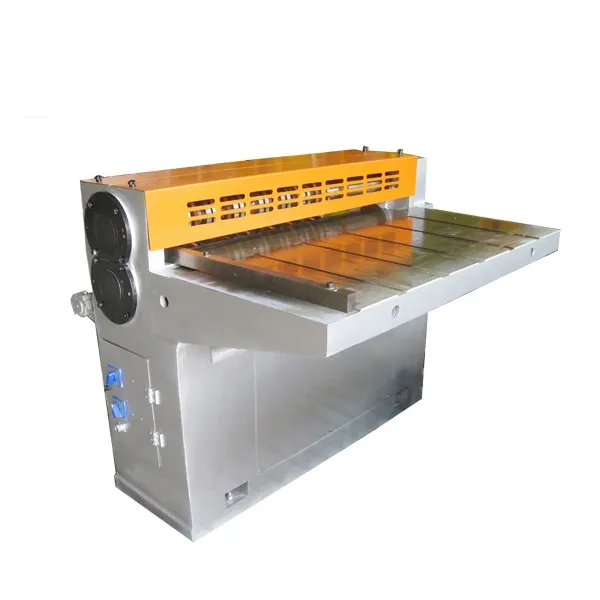

1. Gang Slitter

	Model	GT1B5
	Max sheet thickness:	0.4mm
	Max sheet width:	1050mm
	Min sheet width	52mm
	Motor power:	1.1kw
	Net weight:	1400kgs
	Dimension:	1500x1600x1105mm

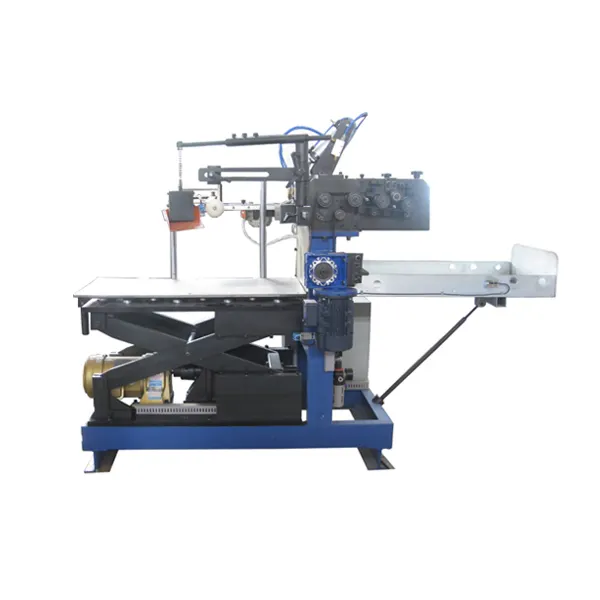

2. Automatic Roll forming machine

	Model	CY400-AT
	Capacity:	20-30cans/min
	Diameter:	Φ75-Φ300
	Applicative height:	<≤440
	Net weight:	450kg
	Dimension:	2000×900×1500mm

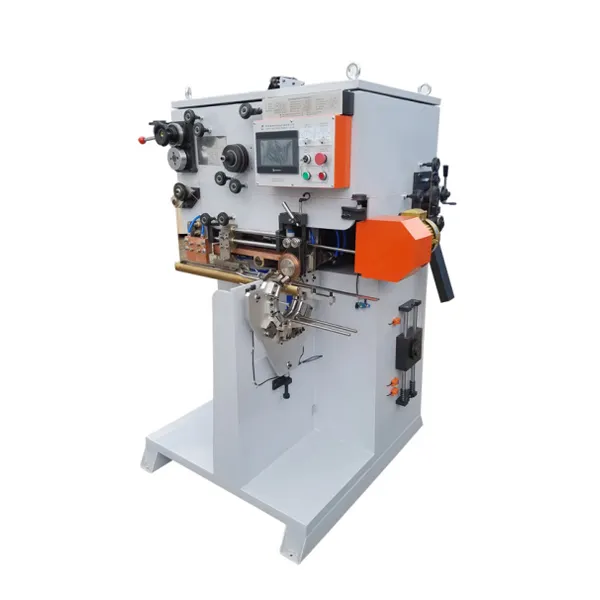

3. Rear Feeding Seaming Welding Machine

Model:	FB2000-A	FB2000-B
Power:	3N380V/50HZ----15KVA
Welding speed:	≤12m/min
Capacity:	20-50cans/min
Diameter:	￠65-300mm	￠52-170mm
Height:	70-400mm	70-300mm
Overlap:	0.6-1.2mm	0.4-1.0mm
Thickness:	0.2-0.4mm	0.18-0.35mm
Copper wire:	￠1.5-1.7mm
Cooling water:	≥0.3Mpa 8-10L/min
Net Weight:	1300kgs
Dimension:	1350x1300x1700mm
