Semi-automatic locked seam can line
This line is widely used for the biscuit can making ,moon cake can making ,tea can making and so on , and through changing molds ,the round type can and square type can could be made on the same machine, We supplied such line to Saudi Arabia, Dubai, Vietnam, Malaysia, India, Mexico, Jordan and so on
Product Details

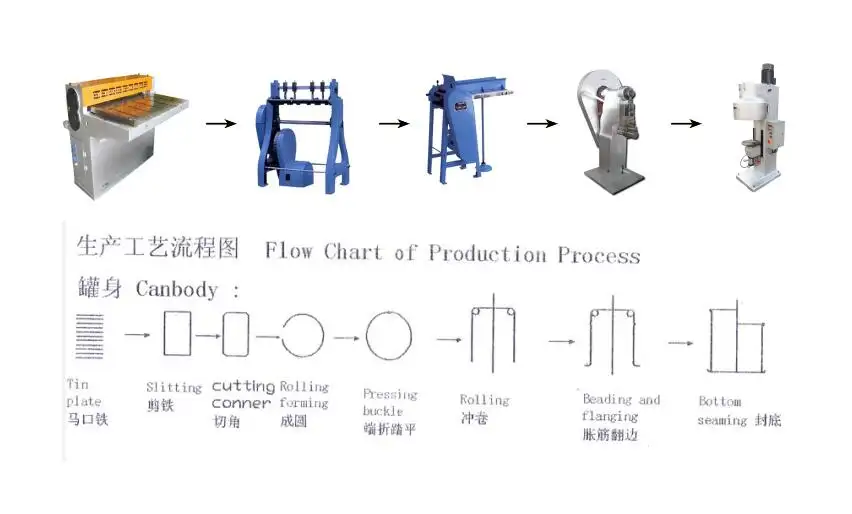

Flow chart of semi auto lock seaming can making machine

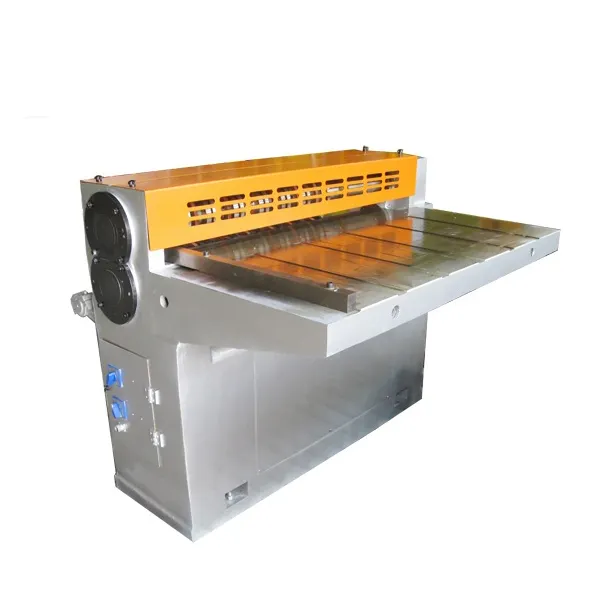

1. Gang Slitter
 |
Model: | GT1B5 |
| Max sheet thickness: | 0.4mm | |
| Max sheet width: | 1050mm | |
| Min sheet width: | 44mm | |
| Motor power: | 1.1kw | |
| Net Weight: | 1000kg | |
| Dimension: | 1500x1600x1105mm |
2. Notching Machine
 |
Model | GT3A1 |
| Capacity: | 60cans/min | |
| reciprocating times: | 155times/min | |
| Motor power: | 0.55kw | |
| Net weight: | 250kgs |

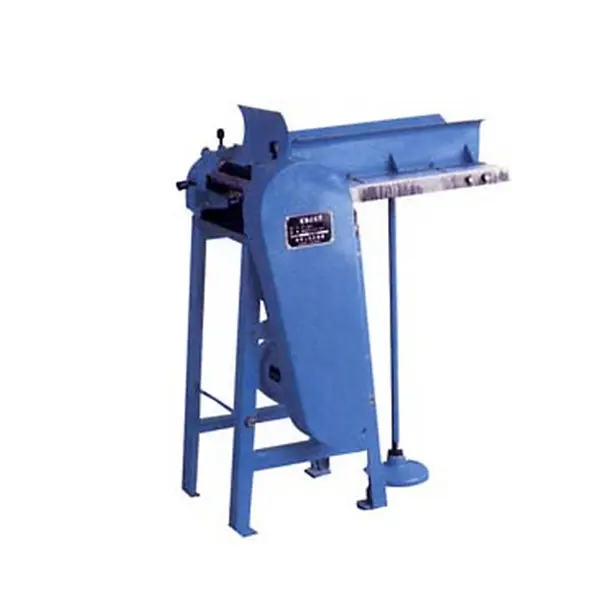

3. Rolling and pre-curling machine
 |
Model | GT-3A3 |
| Capacity: | 20-40cans/min | |
| Speed: | 655r/min | |
| Applicative height: | no more then 455mm | |
| Motor power: | 0.55kw | |
| Net weight: | 220kgs | |
| Dimension: | 1840x800x1500mm |

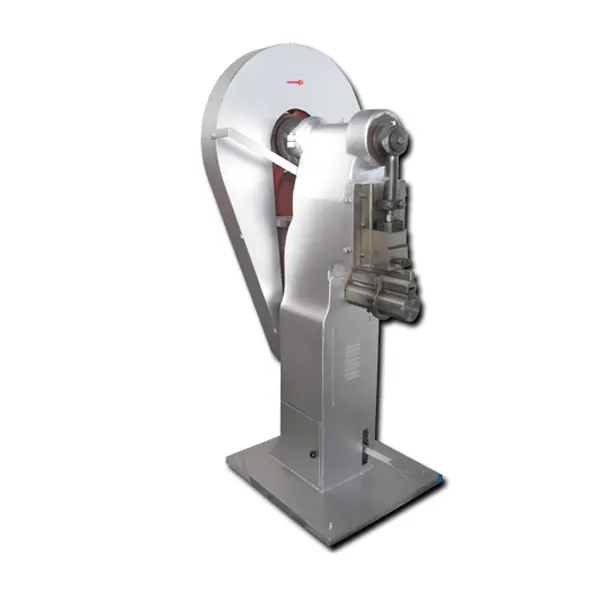

4. Folding and Locking machine
 |
Model | GT3A6A |
| Capacity: | 30-72cans/min | |
| Application range | all round cans | |
| Motor power: | 0.75kw | |
| Net weight: | 500kgs | |
| Dimension: | 790x710x1735mm | |
| Lock Seam Arm | 300mm Length |

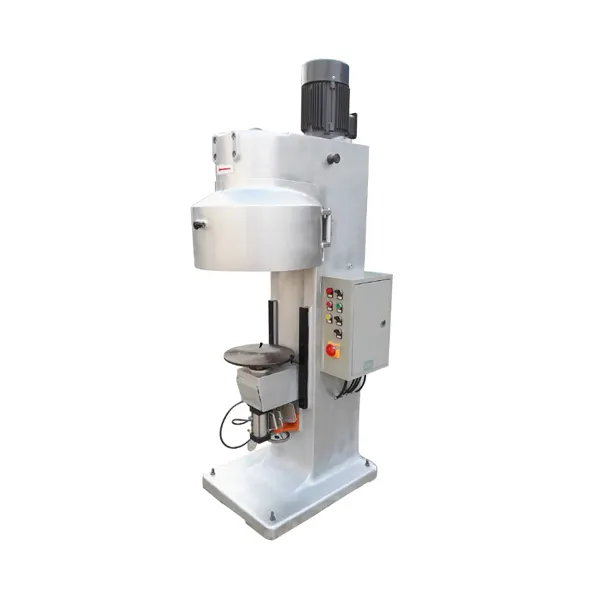

5. seaming machine
 |
Model: | GT14A6YQ |
| Application: | 0.1-5L round can | |
| Capacity: | 15-20 cans/min. | |
| Electrical Power: | 2kw | |
| Net Weight: | 750kg | |
| Dimension: | 1070*720*2050mm |
