Conipail can making

This line is suitable for 10-25L conical pail can making, open top type and also closed top type can. Production capacity is 25-30cans per min.

MESSAGE

CONTACT

Product Details

This line is suitable for 10-25L conical pail can making, open top type and also closed top type can. Production capacity is 25-30cans per min.

Machine features:

1. We adopt PLC, servo motor, frequency conversion motor to realize full automatic ontrol
2. With mechanical cam transmission, cam clamping&holding cans, cam conveying cans, machine speed is continuously adjustable and machine running is stable and reliable
3. There are detection and protecting devices for right position movements, can stucking and every functions.
4. Height can be adjusted automatically by PLC, it is easy and fast to change machine toolings.

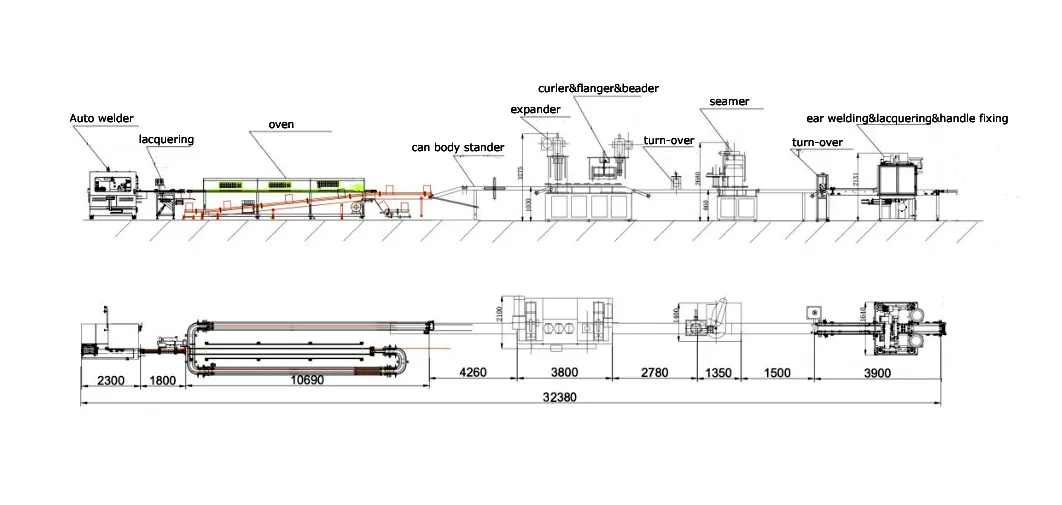

Layout of automatic conical pail can line

Machine Details of automatic conical pail can line

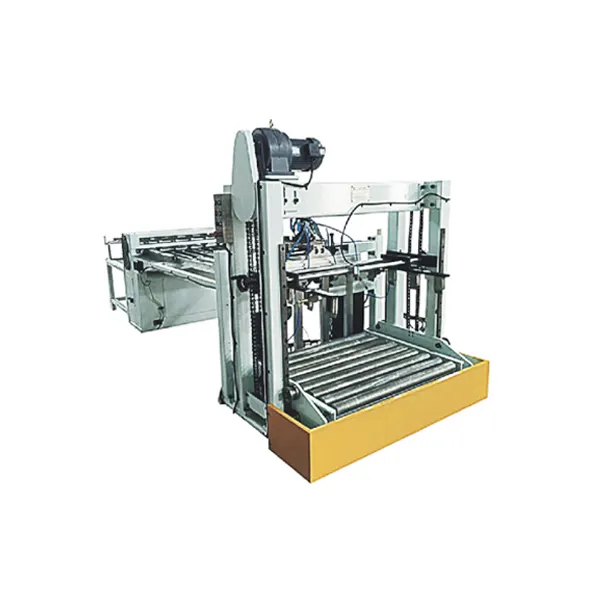

1. Automatic single slitter

	Speed	30pcs/min
	Max sheet size	1050x1050mm
	Thickness	≤0.45mm
	Thikcness	0.12-0.5mm
	Dimension	4500x1300x2000mm

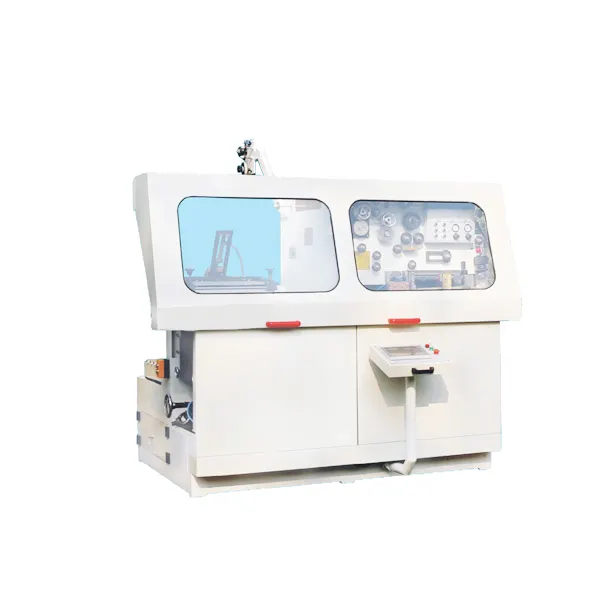

2. Automatic tin can welding machine

	Welding speed	6-15m/min
	Production capacity	25-35Cans/min
	Can diameter range	220-300mm
	Can height range	220-500mm
	Thickness range	0.2-0.4mm
	Copper wire diameter	Φ1.8mm ,Φ1.5mm
	Cooling water	Temperature： 12-20℃ Pressure：>0.4Mpa Flow：40L/min
	Power supply	380V±5% 50Hz 125KVA
	Dimension	2200x1520x1980mm
	Weight	2500kg

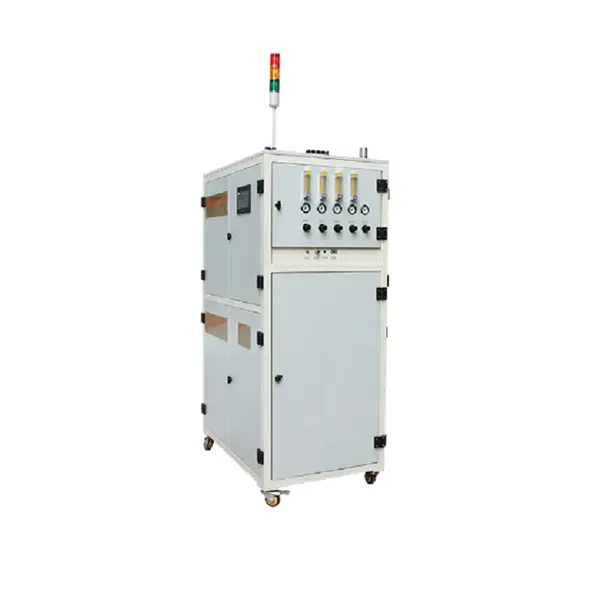

3. Inner powder coating machine

	Production speed	5-60m/min
	Powder consumption	8-10mm&10-20mm
	Air consumption	0.6Mpa
	Can diameter range	D50-200mm D80-400mm
	Air requirement	100-200L/min
	Power consumption	2.8KW
	Dimension	1080x720x1820mm
	Weight	300kg

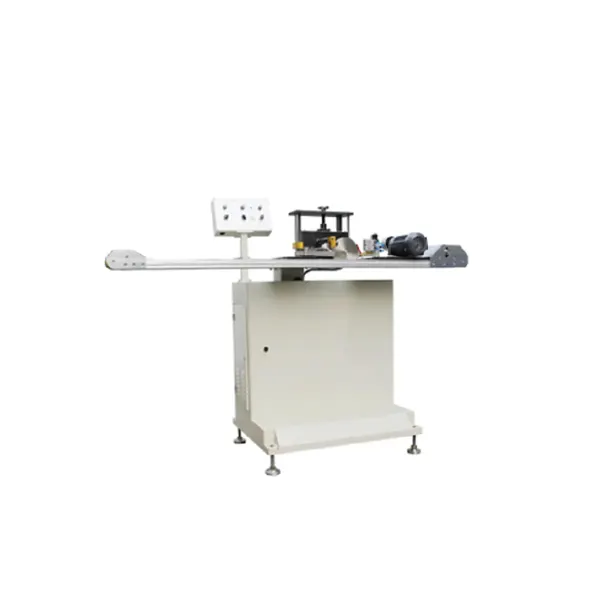

4. External lacquering machine

	Can height range	50-600mm
	Can diameter range	52-400mm
	Roller speed	5-30m/min
	Coating type	Roller coating
	Lacquer width	8-15mm 10-20mm
	Power supply	220V 0.5 KW
	Air consumption	0.6Mpa 20L/min
	Dimension	2100x720x1520mm
	Weight	300kg

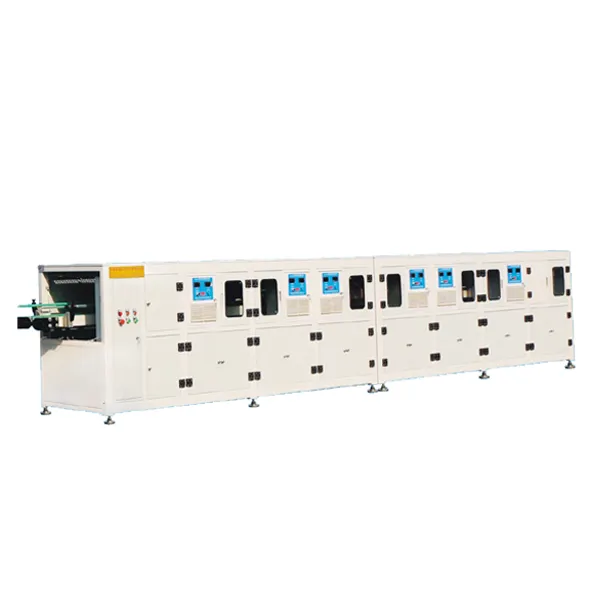

5. High Frequency Electromagnetic Dryer

	Buner power	1-2kw
	Heating speed	4-7m/min
	Can diameter range	176-350mm
	Can height	45-600mm
	Cooling water	>0.4Mpa,12-20℃，40L/min
	Air consumption	≥50L/min>0.5Mpa
