Semi-automatic can top&bottom line

This line is widely used for the top over, ring and bottom lid making, production capacity is 12-15cans per min.We supplied such line to Saudi Arabia, Dubai, Vietnam, Malaysia, India, Mexico, Jordan and so on

MESSAGE

CONTACT

Product Details

The semi auto tin can top and bottom making line is suitable to match our semi auto canbody making line,production capacity is 15-20 cans per min.
We supplied our tin can top and bottom machines to Saudi Arabia, Dubai, Vietnam, Malaysia, India, Mexico, Jordan and so on.

Layout of semi auto tin can top and bottom making line

自动小圆

Machine Details of semi auto tin can top and bottom making line

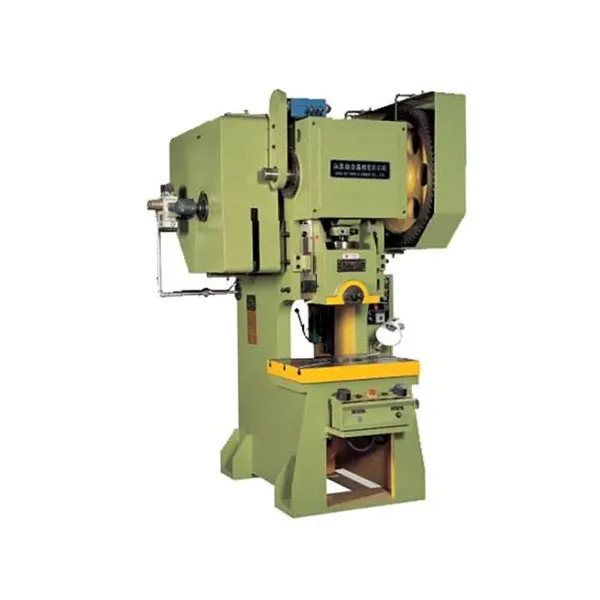

1. Press

Model	J23-16	J23-25	J23-40
Norminal force(kN):	160	250	400
SPM(min-1):	125	60	55
Between slide center and frame:	160mm	210mm	260mm
Shank hole(mm):	Φ40*60	Φ40*70	Φ50*70
Motor power(kw):	1.5	2.2	4
Net weight(kg):	1080	1900	3180

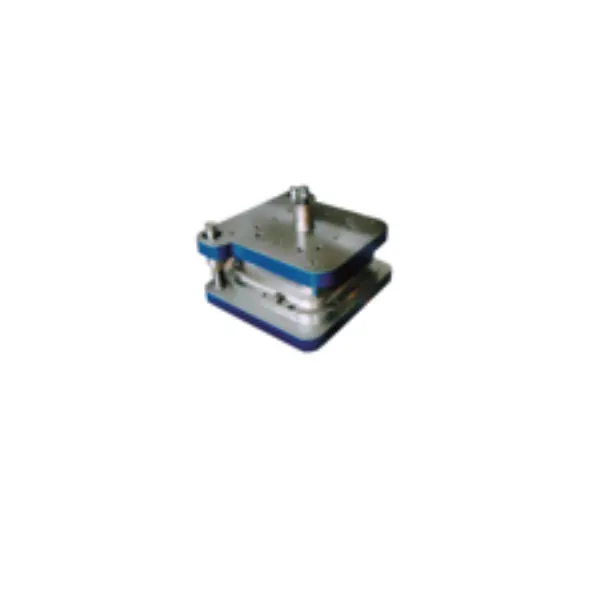

2. Punching Die

	Shape:	Round/Rectangular/Square
	Material:	Cr12mov/D2/DC53
	Applicative Diameter(mm):	Φ52-Φ180 Φ220-Φ300
	Net weight:	100-200kgs
	Dimension:	200x200x80mm

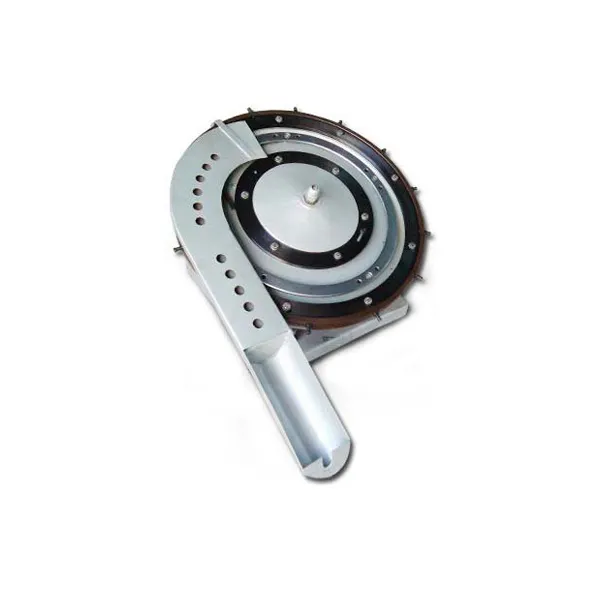

3. Semi-automatic Curling Machine

Model	GT2B3	GT2B5	GT2B8
Capacity(pcs per min):	30-100
Applicative Diameter(mm):	Φ52-Φ108	Φ108-Φ153	Φ153-Φ180
Power:	0.5kw
Net weight:	150kgs
Dimension:	740x1100x590mm

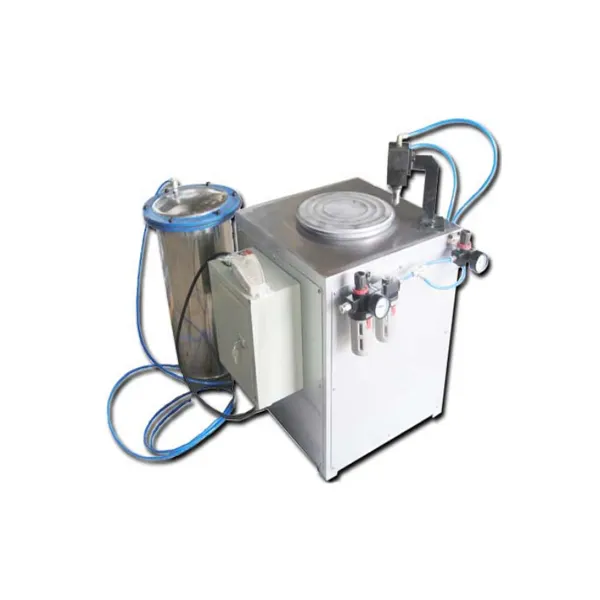

4. Semi-automatic Small Round Can Top&Bottom Lining Machine

Model	GT2C3	GT2C5	GT2C8
Capacity(pcs per min):	30-100
Applicative Diameter(mm):	Φ52-Φ108	Φ108-Φ153	Φ153-Φ180
Power:	1kw
Net weight:	150kgs
Dimension:	740x590x1100mm
